Atchison, Topeka And Santa Fe Stock Car 60347

 For this build I removed an InterMountain Railway Company (IM), kit 42999, an Atchison, Topeka And Santa Fe (ATSF) (Santa Fe) stock car from my to build inventory.  I chose this kit as I really enjoyed building Santa Fe Reefer 32153 written up in  my July post.   The build and upgrade of Santa Fe Stock Car, Santa Fe class Sk-T, I numbered 60347, proved again to provide hours of enjoyable time at the modeling bench.

The kit came with K brakes which I chose to build with AB brakes as my Minneapolis & Northland Railroad Company is set in spring of 1955.  In January 1953  when the mandate for replacement of KC brakes became final, stock car 60347 was called in for replacement.  An InterMountain kit 42998 was produced with AB brakes which would eliminate some of the work I had to do to build a class Sk-T stock car.  Either of the IM kits can be built as a single deck or double deck car.  I chose to build a single deck car.


The prototype 500 stock cars were built by the Pennsylvania Car Company in 1929.  These stock cars, class Sk-T, assigned to series 60002 - 60501, were one of five classes built as stock cars.  The Sunshine Models Prototype Data Sheet #56A (PDS) provides the following design criteria for these cars: steel “Z” braced side truss, wood side slats, solid reinforced ends, metal clad roof, and straight center sill.  Running boards were wood.  Ajax power hand brakes.  Bottom mounted uncoupling levers (cut) were used.  Inspection doors, for checking the condition of animals, at the top on both ends and two “toe holes” were used for reaching the doors.  The cars were painted Mineral Brown.  The cars rode on ARA style cast side frame trucks.



ATSF 60463
(Click on this or any image to enlarge)



ATSF 60463
Sunshine Models Prototype Date Sheet #56A
After Richard's passing his photo collection
went to the California State Railroad Museum.


For my build of 60347 I used prototype photos of cars in Santa Fe class Sk-T found in Sunshine Models Prototype Data Sheet #56A (PDS).  The PDS contains excellent side and “B”  end views of stock car 60463.  Another resource I used was “Livestock Operation on Model Railroad with an emphasis on the ATSF” (On-Line Resources, revised February 2, 2013) written by Steve Sandifer.  There are photos of stock cars 60033 and 60209, class Sk-T, and a photo and plan of Santa Fe 68745 adjustable double-deck stock car can be found in Stock Car Cyclopedia Vol. 1 (Hundman Publising Incorporated, 2007).


I began the build by gluing the kit sides to the underbody with the ends molded attached to create the basic “box.”  The kit floor for a single deck stock car was installed.  After I installed the kit running boards to the roof, the roof was installed; however, not glued until later after car weights were added.  I cut off the molded on sill steps as alternate kit steps and again metal sill steps would be added later.



Basic carbody assembled.


I moved onto the underbody basic work.  When looking at the underbody I was impressed to find not only a molded train line but a molded “tee” in the train line for connecting the dirt collector pipe.  It is the only kit I have eve built with the molded dirt collector “tee.”


I installed the kit underframe.  I drilled and tapped coupler pocket pads and bolster kingpins for 2-56 screws.   Kadee coupler #262 boxes with Kadee #148 couplers inserted and kit trucks with InterMountain 33” metal wheel sets were installed with Fastenal 2-56 x 316” screws for coupler pockets  and 2-56 x 1/4” screws for trucks.  Tichy Train Group (Tichy) brake components from Tichy set #3013 and kit brake levers were installed.  Brackets used for mounting the brake components were as follows: cut off plastic sill steps from other cars for the air reservoir, Sunshine Models resin cast bracket from the parts box for the brake cylinder and a Tichy part from AB set #3013 for the AB valve.  The install of kit brake brake cylinder and floating brake lever followed.  And, the bell crank, Tichy set #3013, for attaching brake rod on “B” end was installed.



Brake components installed.
Note the "tee" in the train line on the AB valve side.


To weight the car to 3.8 ounces, stick on tire weights were added to the inside of the underbody above the trucks and a bead of  Formula 560 canopy glue.  The roof was now glued to the car body and kit end brackets installed on the ends with MEK (styrene melted in MEK).



Roof installed.


I now  began the “B” end work.  I first installed a Tichy brake step, set #3013, and brackets from parts box.  With the brake step in place I marked the  location of the toe holds to access the inspection doors.  I drilled two holes side by side of the center line of the toe holes location with a #56 .0465 drill.  The remaining material was removed with a scalpel blade, broach and small round file.  And, finished with a sanding stick to complete the toe holds.  An Ajax brake housing, chain and brake rod clevis, Tichy set #3013, were installed with CA.  A brake rod was cut from Detail Associates #2505 .015” diameter brass wire and installed.  MEK Goop was used to make the top fastener to attach the brake rod to chain.



"B" end  brake gear  and toe holes made.


I continued to work on the “B” end.   I installed a retainer valve, Tichy set #3013, and retainer line, Tichy #1100, .008” diameter PBW per prototype photo.  I installed the kit inspection doors with kit inspection door handles installed earlier, ladder rungs and straight and drop type grab irons bent from Tichy #1100 .010” diameter PBW.



"B" end details including retainer valve and line
 installed based on photo below.



Photo showing one location of
the retainer valve.
Steve Sandifer Collection


I went back to the work on the sides.  On the sides the kit provided alternate sill steps were installed.   Later these were cut off and replaced with A-Line #29000 wire ones bent to shape.  A kit provided wire lower door guide  was installed.



Door guide and alternate sill steps installed.



With lower door guide in place, the doors with prior installed kit door handles were installed.  Drop type ladder rungs and grab irons bent from Tichy #1101, .010" diameter PBW were installed.  On the left side of the car the grab irons on the prototype are mounted on a board attached to the car.  Since this detail was not molded on the car, I cut boards for the car from a saved piece of large resin flash and added fasteners made with MEK Goop.




Door, grab irons and ladder rungs added.


I moved back to the roof to install the roof grab irons.   Roof grab irons were bent from Tichy #1101 .010” diameter PBW and installed with Yarmouth Model Works photo etched eye bolts without shoulder for corner legs.



Roof Grab irons installed.



Back to the “B” end to complete work needed there.  A Kadee Ajax brake wheel was installed.  Uncoupling levers were bent from Tichy #1106 .0125” diameter PBW.  The uncoupling levers brackets were molded into the corner plate with poling pocket as on the prototype.  The molded on uncoupling lever bracket was another unusual feature of this kit.



Brake wheel and uncoupling lever installed.



Back to the sides where I cut off the alternate installed sill steps as they were just too thick.  New sill steps, A-Line # 29000 bent to prototype shape and installed.



Metal sill step installed.


With the carbody details added, I moved to the underbody to finish adding details needed there.  Underbody details were added as follows:


  • Universal slack adjuster, parts box
  • Brake levers, kit (installed earlier)
  • Brake lever hangers, kit
  • Brake piping from air reservoir to control valve, Tichy #1101, .010” diameter phosphor bronze wire (PBW)
  • Brake pipe from brake cylinder to control valve, Tichy #1106, .0125” dia. PBW
  • Brake rods, kit
  • Brake rod clevises, made with MEK Goop
  • Chain, A-Line #29219, black 40 links per inch
  • Dirt collector, Tichy set #3013,
  • Dirt collector pipe to train line, Tichy #1106, .0125” diameter PBW
  • Bell crank, Tichy set #3013


Underbody piping, brake rods and slack adjuster installed.



Once I had the underbody detail parts added I went back to the sides and installed the letter boards.  Next, I hand painted all the added detail parts PollyScale Undercoat Light Grey F414134.



Letter boards installed and car painted grey.



Car body painted grey.


Santa Fe Stock car 60347 was ready for paint.   I checked the Model Railroad Hobbiest paint conversion chart for Vallejo color suggested for Santa Fe Mineral Brown.  The suggested color was Vallejo Model Air Rust 71.080 when applied to a part on the underbody I thought did not look right.  It did not look brown enough, to my eye.  Therefore,  I created a Vallejo Santa Fe Mineral Brown airbrush mix: Model Air Rust 71.080, 30 drops (57%), Model Color Cavalry 70.982, 3 drops  (5%) and custom mixed thinner 20 drops (38%).  My custom thinner mix is 50% distilled water, 25 % Vallejo airbrush thinner 71.161 and 25% Vallejo Flow Improver 71.562.  I tested the mix by hand brushing the brake components on the underbody.


Mix tested on brake components.

Once dry I felt the color had enough brown to use for Santa Fe Mineral Brown.   I first airbrushed the underbody.  After it was dry I still thought the color was acceptable and I airbrushed the car body.



Underbody airbrushed  Santa Fe Mineral Brown.



Car side airbrushed  Santa Fe Mineral Brown.



Car end airbrushed  Santa Fe Mineral Brown.

Once the paint was dry, the car body was sprayed Model Master Gloss Clear Acryl, #4638, to have a gloss base for decal application.  While the gloss finish  was drying I reviewed the Speedwitch Media decal set D101 to choose car number 60347.  The decal set is now available from National Scale Car with the same decal set number D101.   After gloss finish was dry,  decals were soaked off in distilled water and applied to the car body where MicroScale Micro Set had been applied with a brush.

After decals were applied in the Micro Set and positioned the edges had MicroScale Micro Sol applied.  Any excess solution was sucked away with the torn edge of a paper towel.  When dry, car body was sprayed with Model Master Gloss Clear Acryl #4638, to better hide decals edges.  Finally, the car body was sprayed with Model Master Flat Clear Acryl, #4636, flat to protect decals and provide a flat finish for weathering when applied.



Decals applied to car side.



Decals applied to ends.


One more step before putting  Santa Fe 60347 in  service was to weather the car with Pan Pastels and Artmatic eye shadow.  Pan Pastels Paynes Grey Extra Dark 840.1  was used on the roof and lightly over safety appliances on car body with a small 1/4 inch wide makeup brush.  Along the sill area and on the underbody of the car an Artmatic eye shadow light dirt brown color was applied with the same small makeup brush.



Car side weathered.


Roof weathered.


Santa Fe 60347 was ready for service on the Minneapolis & Northland Railroad Company, “Serving today, Shaping tomorrow.”  A car card was made for Santa Fe 60347,  the final step to put the cars in service on the Minneapolis & Northland Railroad Company Railroad.

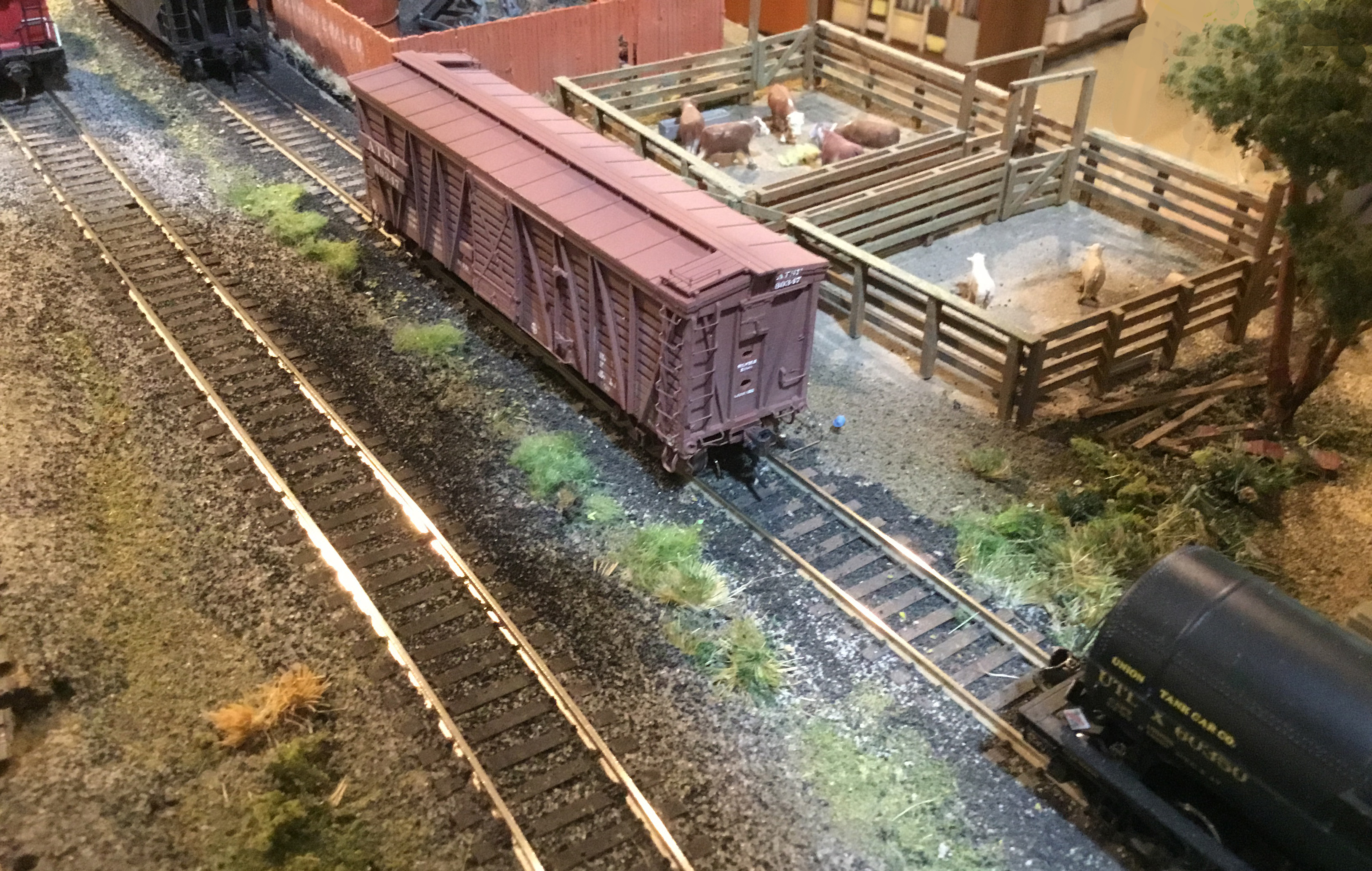

Santa Fe 60347 spotted a Bumsteer Stock Pen
in Little Chicago, Minn.



Santa Fe 60347 spotted a Bumsteer Stock Pen
in Little Chicago, Minn.


Santa Fe 60347 spotted a Bumsteer Stock Pen
in Little Chicago, Minn.


Santa Fe 60347 spotted a Bumsteer Stock Pen
in Little Chicago, Minn.


I want to say, “Thank You” to several individuals that provided information and photo help with this build and upgrade.   Definitely appreciated as without their help this build would not have happened.


A “Thank You,” to Steve Sandifer, Peter Aue, Rich Christe, Andy Cich, Jared Harper, Bill Pardie, and George Toman.




Thank You for taking time to read my blog.  You can share a comment in the section below if you choose to do so.  Please sign your comment with your name if you choose to leave one.  Please share the blog link with other model railroaders.

Lester Breuer




.



Friday, August 5, 2022

MIlwaukee Road Box Cars 716862 & 717024

 After looking through the plastic freight cars kits I have to build, I pulled two Accurail Milwaukee Road (MILW) kits with the same kit number 71091 and same road number of 715062.  To help determine if I should build and rework these cars I first checked the January 1953 Official Equipment Register where I found the MILW did have a series of box cars, class XM, numbered in the 714000 to 715599 series.  A photo of MILW 715277 appears in The Postwar Freight Car Fleet (National Model Railroad Association, Inc. 2006).  Based on this early information and used decals I had, I decided the car numbers would be changed to 715262 and 715324.  Later these numbers were changed again to 716862 and 717024 to have a car number in the series the Klasing power brake was used on.


I continued my search for prototype information in the Steam Era Freight Cars Reference Manual Volume One: Box & Automobile Cars (Speedwitch Media, 2006, 2007).  Here I read the car in series 714000-717199 retained an earlier single-sheathed Howe truss design with three panels on each side of the door, a Hutchins Dry Lading roof and the underframes used the ARA center sill.  New features on this car series included an increased height, 4/4 stamped metal Dreadnaught ends and Youngstown corrugated steel doors.  The Klasing brake systems were of two types: a vertical brake staff type with a geared take-up reel at the sill and early power hand brake with a vertical staff that came out of the brake housing and extended above the running board with a horizontal brake wheel attached there.



Car had Klasing vertical brake staff.
Sunshine Models Prototype Data Sheet #57A
Lester Breuer Collection
(Click on this or any image to enlarge)


The Accurail cars did have the correct sides except for missing corner braces, 4/4 ends which at this time I thought were correct, the Hutchins Dry Lading roof and the lettering was fine.  I could rework the “B” end of car to have the Klasing power brake that I wanted to model that would give these cars a unique look.  Therefore, I began build and upgrade of the MILW box cars.


I should have waited to begin the build until my data gathering was complete.  Why, you ask.  My continued search for prototype photos showed no car with 4/4 ends.   All photos of these cars I could find in sources already mentioned and other photos I found had 4/5 ends as did the photo of 716633 with Klasing power brake provided to me by George Toman.



Internet Photo
George Toman Collection



Not finding any photos with the 4/4 ends, I went finally went back and carefully reviewed the tracing (drawing) of original blue prints found in The Milwaukee Road Freight Cars which contains the Official Employees’s Shop Diagrams of in-service freight cars in 1937 (Normandie House) for series 716500-716999 built by America Car & Foundry and series 71700-717199 built by Pacific Car & Foundry.  The drawing confirmed 4/5 ends.  And, my friend Steve Steele reminded me of Sunshine Models Prototype Data Sheet (PDS) #57A which provides what Klasing brake was applied to which series of cars.  The PDS states the 741000-716499 series used the vertical brake shaft and series 716500-717199 used the power hand brake with vertical brake shaft.


Finally I had all the data I needed that I should have had when I began the  build; however, I was now well into the build and upgrade.  Therefore, I decided to finish the two cars knowing the ends should be 4/5 ends and the corner braces were missing on the sides.  If one did not want to save the lettering and stripped the car the corner braces could have been added using .005” styrene.


I began the build on the underbodies by removing molded on brackets for brake components with a Xacto knife with #17 blade.   Drilling and tapping the coupler pockets and bolster center plates for 2-56 screws followed.  Kadee #148 couplers were installed in the coupler pockets and covers installed with Fastenal 3/16” screws.   Accurail trucks, ARA cast steel with spring plank, with InterMountain 33 inch metal wheels were installed with Fastenal 1/4 inch screws until correct trucks were found.  The kit fish belly center sill was not installed as the MILW cars had a straight sill that would be added later.  The kit weight, the only weight needed, was attached to the inside of underbody with Permatex, a clear silicone RTV adhesive sealant, bringing the car weight to 3.8 ounces.   When the Permatex was setup the underbody was installed into the car body.



Basic underbody



On the car body I removed the wood running board, milled and scraped it with a single edge razor blade (SERB) until a thickness of .025” was obtained and reinstalled it with Testors Tube Cement.  The longitudinal running board end brackets were made with Plastruct #90501 3/64” styrene angle and Evergreen #8102, 1 x 2” strip styrene.



Running thinned to .025" thickness and installed.



Running board end bracket.


Running board end bracket.


Next all molded on grab irons , ladder rungs, door handles and stops and on the “B” end the brake rod were carved off.   Sill steps were also cut off.  A bottom door guide, Evergreen 2 x 3” strip styrene was installed.



Molded on grab irons, ladder rungs, door handles
 and stops carved off and lower door guide installed.



Molded on ladder rungs, grab irons, and brake rod
carved off.


Moving to the “B” end I fabricated the Klasing brake gear by cutting off the portion of the molded on brake housing with the hole.  A circle cut from the running board mounting pins that had been cut off was glued to the remaining housing.  A second circle was cut in half and a half circle was glued on top of the first circle.   MEK Goop was used to form the top of the brake housing.  Most modelers would use a modeling putty to form the top.



Molded on brake housing reworked into
Klasing brake gear.


Before continuing work on the "B" end I installed a bell crank and clevis from Tichy Train Group (Tichy) #3013 AB brake set.  On the “B” end I cut off the brake step brackets and replaced them with brackets cut from Evergreen #8102, 1 x 2” strip styrene.  I added the chain to the Klasing brake housing using A-Line #29219 40 links per inch black chain.  A brake shaft consisting two sections, one above brake housing and one from brake step to bell crank clevis, were cut from Detail Associates #2505 .015” brass wire and installed with CA.  A Tichy brake wheel from AB #3013 set was installed.



"B" end details added.


Before moving on with adding other detail parts, I hand painted all areas where molded on details had been removed and detail parts already added with a Vallejo Model Color mix of Black Red 70.859 (75%) and Cavalry Brown 70.982 (25%).



Areas with carved off parts painted.



"B" end areas with carved off parts painted.


Once the paint had dried, grab irons on sides and ends, ladder rungs and door handles bent from Tichy #1101 .010” diameter phosphor bronze wire (PBW) were installed.  Sill steps, A-Line #29000, style A, were installed.



Wire grab irons, ladder rungs, and sill steps installed.



With car body work done except for roof grab irons I moved onto the underbody work which had details added as follows:


- center sill, Evergreen #136, .030 x .125” strip styrene

- train line, .018” diameter flora wire

- brake components, kit parts, drilled for piping prior to install

  - brackets for brake components: air reservoir cut off sill steps, and resin parts for brake cylinder and AB valve

- brake cylinder lever cut from Evergreen #8108 1 x 8” strip styrene

- brake floating lever cut from Evergreen #8106 1 x 6” strip styrene

- brake lever hangers, plastic grab irons

- piping air reservoir to AB valve, Tichy #1101 .010” diameter PBW

- pipe back of brake cylinder to AB valve, Tichy #1106 .0125” diameter PBW

- dirt collector, resin cast in M&N Shops using Tichy part as master

- universal slack adjuster, parts box

- brake rods, Tichy #1106 .0125” diameter PBW

- brake rod turnbuckles, Tichy #8021 plastic turnbuckles

- chain, A-Line #29219, black 40 links per inch



Side view of center installed.


Underbody details added.


Back to the roof to add roof grab irons bent from Tichy #1101 .010” PBW with Yarmouth Model Works photo etched eye bolts without shoulders for corner legs.  And, back to the “B” end to install the uncoupling levers.  The uncoupling levers were bent from Tichy #1106 .0125” diameter PBW and eye bolt brackets were bent from Tichy #1101 .010” diameter PBW.



Roof grab irons and uncoupling levers installed.


Uncoupling levers being the final detail part to add, it was time for paint.  I used the Vallejo Model Color mix of Black Red 70.859 (75%) and Cavalry Brown 70.982 (25%) to hand paint all detail parts added.   And, the mix was thinned with a custom thinner mix of 50% distilled water, 25% Vallejo air brush thinner and 25% Vallejo flow improver to airbrush the underbody.



Cars hand painted



Car ends hand painted,


Underbodies of cars airbrushed.


When paint was dry, the numbers in the car numbers that needed to be removed were removed by placing a drop of Walthers Solvaset on them and using the side of a toothpick to gently rub over them until removed.  When the areas where numbers were removed had dried, Future Floor Finish was brushed on the areas to provide a gloss base for decal application.  Milwaukee Road used decal sets were the source for the new numbers.  I attempted to match the Accurail applied lettering as close as I could.


I first changed the car numbers from 715062 to 715262 and 715324 before I found out these numbers were not in the series for cars with the Klasing power brake. Therefore, the numbers were changed a second time.   Car number 715262 was changed to 716862 and 715324 was changed to 717024.


Decals were soaked off in distilled water and applied to the car body where MicroScale Micro Set had been applied with a brush.   After the decal was applied in the Micro Set and positioned the edges had MicroScale Micro Sol applied.  Any excess solution was sucked away with the torn edge of a paper towel.  Again when dry, car body sprayed with Vallejo Gloss Varnish 70.510 to better hide edges of decals and protect decals during handling.  Again when dry, the car body was sprayed with Model Master Flat Acryl, #4636, to protect decals and provide a flat finish for weathering when applied.



Car numbers changed and clear coated.


Weathering was applied by going over the sides lightly with Prismacolor, PC1061, cool Grey color pencil.  After that was done, Pan Pastels Paynes Grey Extra Dark 840.1 was applied to the roof and sides lightly with a large makeup brush.



Car lightly weathered.


Car ends lightly weathered.


Car roofs lightly weathered.

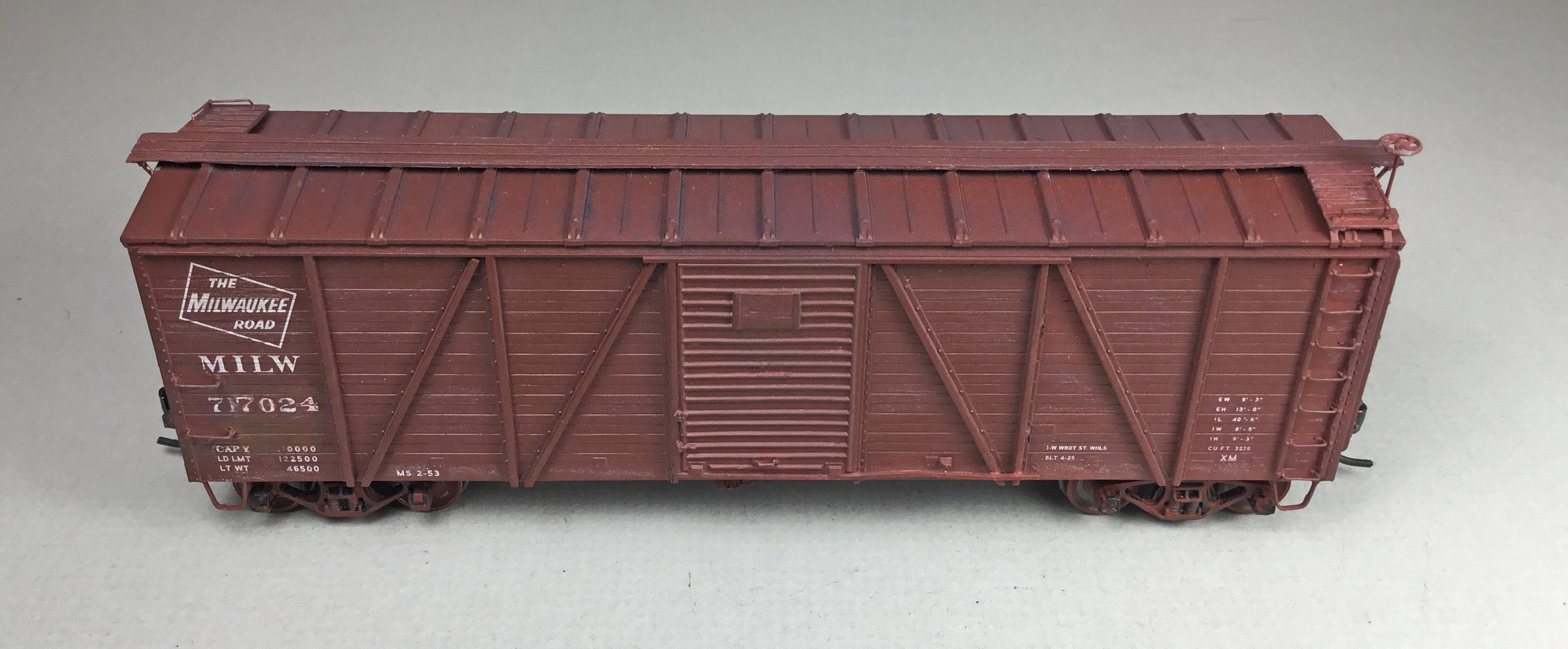

Milwaukee Road box cars 716862 and 717024 were ready for service on the Minneapolis & Northland Railroad Company, The Lakeland Route, “Serving today, Shaping tomorrow.”  Even with the 4/4 rather than 4/5 ends and corner boards missing they will be will be fine for service now.  A car card was made for each car which is the final step to put the a car in service on the Minneapolis & Northland Railroad Company Railroad.
